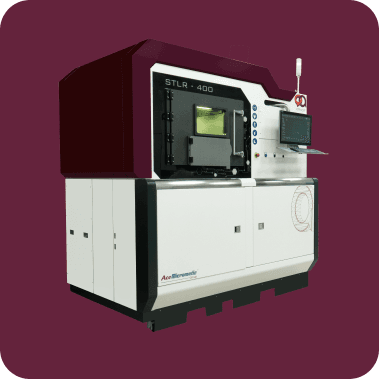

STLR-400
STLR 400 High Productivity
3D Metal Printer

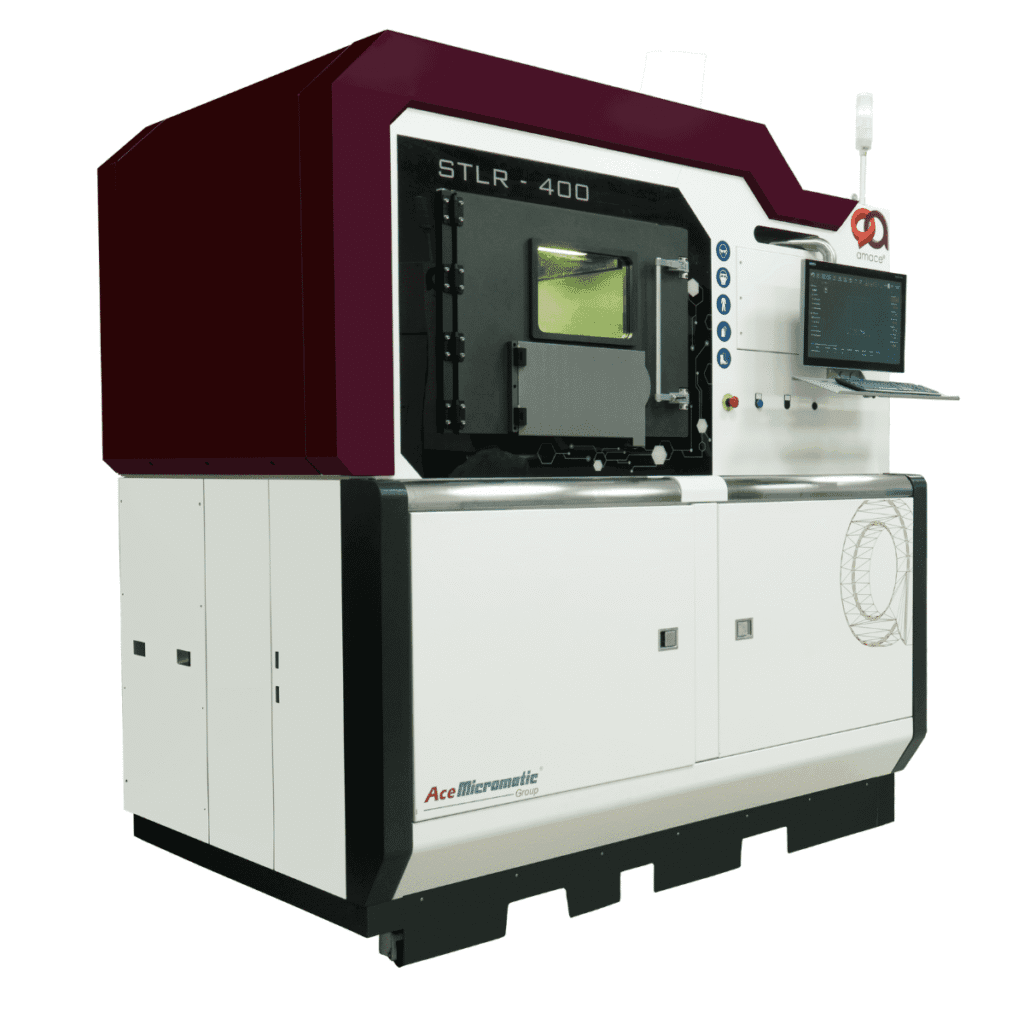

STLR 400: Advanced 3D Metal Printer for Industrial Manufacturing
The STLR 400 is the latest innovation in industrial 3D metal printer, designed to meet the high-performance demands of sectors such as Aerospace and Defence, Automotive, Medical, General Engineering, Die & Mould and etc. As one of the most advanced machines in its class, the STLR 400 combines precision engineering, cutting-edge technology, and user-centric design to redefine productivity and quality in additive manufacturing.
High Build Volume & Productivity 3D Metal Printer
With a class-leading build volume, the STLR 400 allows manufacturers to print large metal parts or nest multiple components in a single run. This enhances throughput while maximizing material utilization—making it an excellent choice for both prototyping and full-scale production. Whether you’re building large aerospace brackets or multiple automotive components, the STLR 400 delivers consistent results.
Intelligent Powder Handling & Safety
A standout feature of the STLR 400 is its automated powder handling system. The entire process is enclosed, reducing exposure and improving operational safety—an essential advantage in environments working with reactive metals like Aluminum or Titanium. Nanoscopic sensors monitor and regulate powder flow in real time, ensuring the precise amount of material is used throughout the build.
Versatility for R&D and Production 3D Metal Printer
Beyond production, the STLR 400 supports research and development with its part volume reducer, which allows for smaller builds and minimal powder usage—ideal for testing new materials, alloys, or process parameters. Powder preparation supports particle sizes down to 75μm, allowing for finer detail and better surface finishes.
Broad Material Compatibility
The STLR 400 supports a wide range of metal powders, including AlSi10Mg, stainless steel, titanium alloys, and even precious metals like gold. This material flexibility makes it suitable for everything from industrial tooling to medical implants and custom jewelry applications.

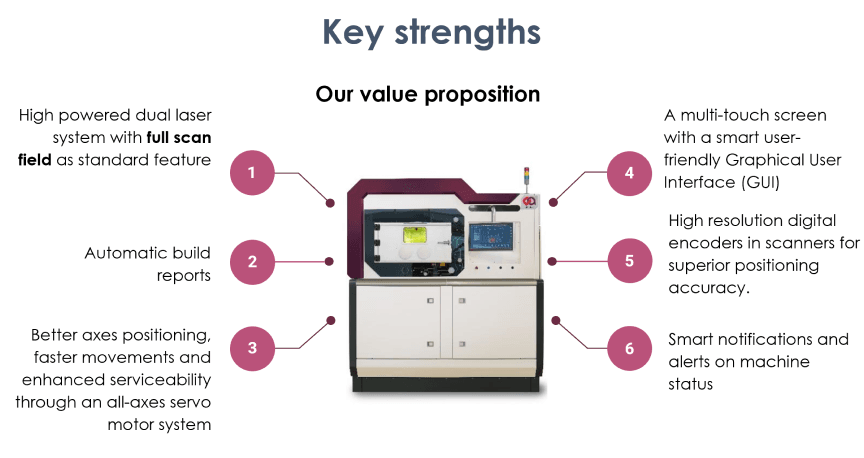

Why Choose the STLR 400?
High-speed dual-laser system for faster builds
Large build volume for flexibility in part size and quantity
Enclosed, automated powder handling for maximum safety
Compatible with a wide range of metal materials
Ideal for both industrial production and material R&D

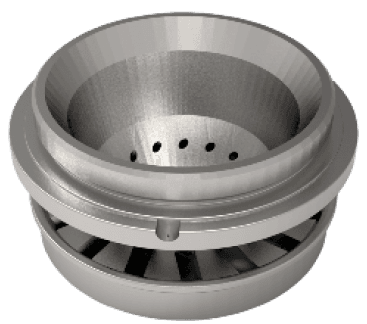

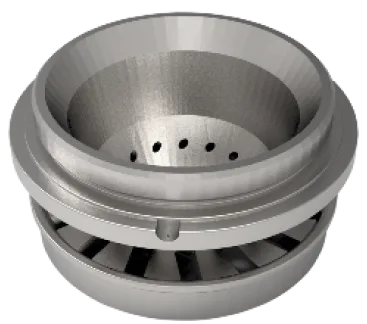

20 days lead time reduction Material: IN625
Faster development
AM does not need specific tooling or casting. Any design may be produced in a short period of time from a cost-effective perspective.

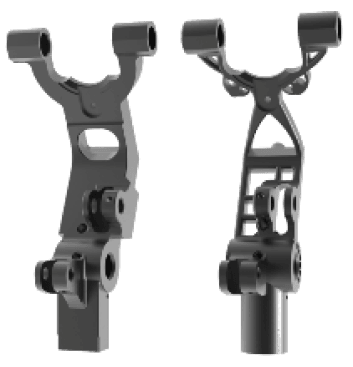

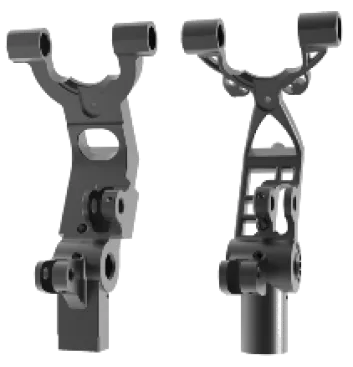

30% weight reduction Material: AlSi10Mg
Light Weight
AM enables the design and manufacturing of highly stable lightweight structures that cannot be produced using conventional technologies.

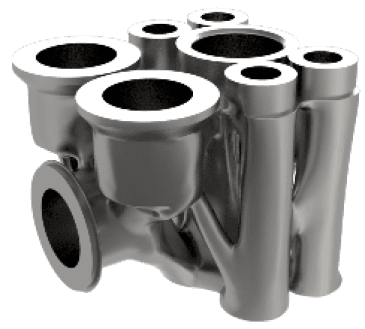

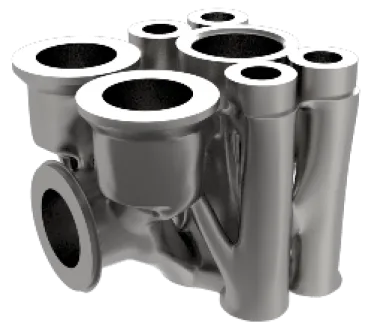

50% increase in flow efficiency Material: 18Ni300
Produce complex geometries
Internal channels for conformal cooling, hidden features, thin walls and lattice structures are only possible in AM.
Key Features of STLR-400
Large Build Volume of 410mm x 410mm x 450mm
- STLR-400 allows large-sized or high-volume components to be printed
- Increased flexibility of jobs that can be done
- Ability to print variable layer thickness

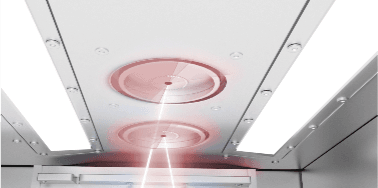

Dual 1000W Lasers
- Powered by 2 x 1000W lasers with full scan field, functioning independently of each other.
- Offers high productivity while giving the option of working with a wider range of materials.
- Exceptional precision and high positional accuracy with superior beam spot quality.

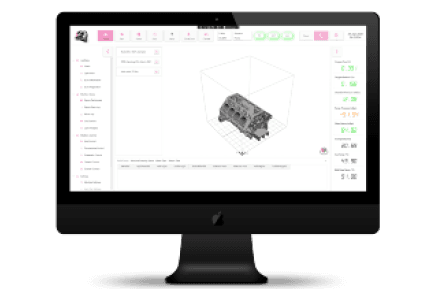

Smart and Intuitive Control
- Powered by 2 x 1000W lasers with full scan field, functioning independently of each other.
- Offers high productivity while giving the option of working with a wider range of materials.
- Exceptional precision and high positional accuracy with superior beam spot quality.
Powder Management and Control
- Smart powder management system monitors the powder levels continuously and dynamically predicts the powder required to complete the print job in real-time.
- Fast powder extraction system from the build chamber, ensures machine is ready for the next print job in minutes.
Multi-Blade Re-coater
- Patented multi-blade recoating system ensures a uniform distribution of powder during the build.
- Minimum downtime in the event of a part defect requiring a changeover of the blade.
High Productivity Printing
- In-house development of high productivity printing technique allowing parts to be produced at a higher rate - VoluMeltTM.
- Enables faster completion of the printing process and makes it cost-effective.
Technical Specifications
Build Envelope
Laser Power
Scanning Speed
Layer Thickness
Beam focus diameter
Re-coater type
Preparation Software
Dimensions
Power Supply
Materials
410mm x 410mm x 450mm
Up to 9m/s
30 to 100μm
80μm to 120μm
High durability soft bi-directional multi blade re-coater
Materalise Magics RP with cutomised amace build processer
3200mm (W) x 2400mm (D) x 3200mm(H)
440V – 50Hz (3 Phase)
AlSi10Mg, SS316L, 17-4PH, 15-5PH, CoCr, 18Ni300, IN625, IN718, Ti6Al4V, CuCrZr, H13
Choose for "STLR-400" ?
Have questions or need a quote? Contact the Tred 3D Printing Solutions team today! We’re here to assist you with your metal 3D printing needs and help bring your projects to life.
